1. General information
2. Objectives of the intervention
Goals of the intervention
"The primary objective for the Sterling Pond and McMurry Restoration projects was to remove high, artificial banks [which were] created along the riverbank during gravel mining operations" (Ref. 1). Whilst the creation of these artificial banks sought to prevent river flooding during mining activities, they caused the Cache la Poudre River and its natural processes to become "highly modified and dysfunctional", with the elevated banks resulting in "disconnect[ion] of the river from its floodplain, increased bank erosion due to increased shear stresses resulting from channel confinement, and eliminated bankside vegetation and habitat" (Ref. 1).
The project, therefore, sought to undo the channelisation of the river, recognising that the interaction between surface and groundwater is "necessary to sustain river health and habitat while providing for optimal water quality (filtration) and increased water quantities", hence the river ecosystem as a whole needed to be supported, from the river channel through to the riparian forests, and associated wetlands (Ref. 1). Through the implementation of nature-based solutions, the project sought to support "the river's ecological function[ing] and reduc[e] risks to life and property during significant flood events" (Ref. 1).
The project, therefore, sought to undo the channelisation of the river, recognising that the interaction between surface and groundwater is "necessary to sustain river health and habitat while providing for optimal water quality (filtration) and increased water quantities", hence the river ecosystem as a whole needed to be supported, from the river channel through to the riparian forests, and associated wetlands (Ref. 1). Through the implementation of nature-based solutions, the project sought to support "the river's ecological function[ing] and reduc[e] risks to life and property during significant flood events" (Ref. 1).
Quantitative targets

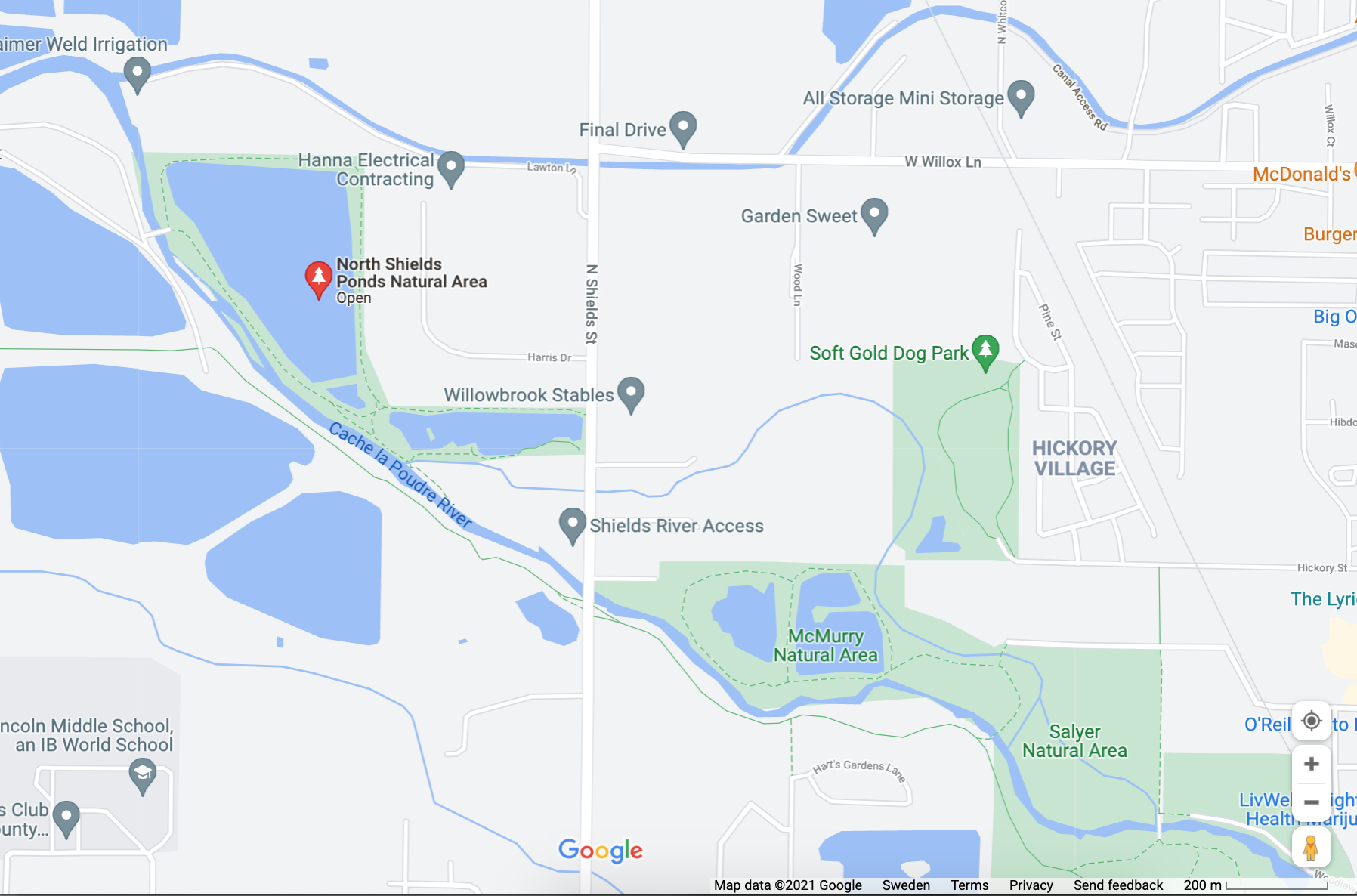

Two sub-projects are drawn upon for this case study: the Sterling Pond (North Shields) Restoration Project and the McMurry Restoration Project.
The Sterling Pond Restoration Project covered a 600 meter stretch of the Poudre River, and involved three key strategies: "lowering the high bank to widen the riparian zone and connect the river with its floodplains, creating additional shallow wetland habitat in the ponds, and removing [an] abandoned dam" (Refs. 1 & 2). The latter objective, removal of a defunct concrete dam (the Josh Ames Diversion Dam), sought to "restore natural river flow, enable fish passage, and improve the riverbed as fish habitat", hence was followed up with a modification of "approximately 150 metres of the river to mimic natural river features and gradation" (Refs. 1 & 3).
The second sub-project which constitutes this case study, the McMurry Restoration Project, concerned the McMurry Natural Area, which " is an 18-hectare site that includes an 800-metre stretch of the Cache la Poudre River and two adjacent gravel ponds" (Ref. 1). Restoration efforts targeted "lowering [of] the riverbanks, creati[on of] wetlands in the gravel ponds, and revegetati[on of] the riparian area" (Ref. 1).
The Sterling Pond Restoration Project covered a 600 meter stretch of the Poudre River, and involved three key strategies: "lowering the high bank to widen the riparian zone and connect the river with its floodplains, creating additional shallow wetland habitat in the ponds, and removing [an] abandoned dam" (Refs. 1 & 2). The latter objective, removal of a defunct concrete dam (the Josh Ames Diversion Dam), sought to "restore natural river flow, enable fish passage, and improve the riverbed as fish habitat", hence was followed up with a modification of "approximately 150 metres of the river to mimic natural river features and gradation" (Refs. 1 & 3).
The second sub-project which constitutes this case study, the McMurry Restoration Project, concerned the McMurry Natural Area, which " is an 18-hectare site that includes an 800-metre stretch of the Cache la Poudre River and two adjacent gravel ponds" (Ref. 1). Restoration efforts targeted "lowering [of] the riverbanks, creati[on of] wetlands in the gravel ponds, and revegetati[on of] the riparian area" (Ref. 1).
Monitoring indicators defined
Unknown.
Sustainability challenge(s) addressed
Climate change adaptation: What were the goals of the NBS?
Climate change adaptation: What activities are implemented to realize the conservation goals and targets?
What types of restoration goals are / were defined for the NBS intervention?
What activities are implemented to realize the restoration goals and targets?
Implementation activities
In order to mitigate the above sustainability challenges, the following implementation activities were undertaken:
- relevant sections of the river were re-naturalised through "significant removal of concrete, debris, and [five] old cars from the river bank placed there historically to prevent erosion" (Refs. 1 & 5);
- "steep and unnatural banks" which were constraining the river were lowered, reconnecting the river with its floodplains (Refs. 3 & 5);

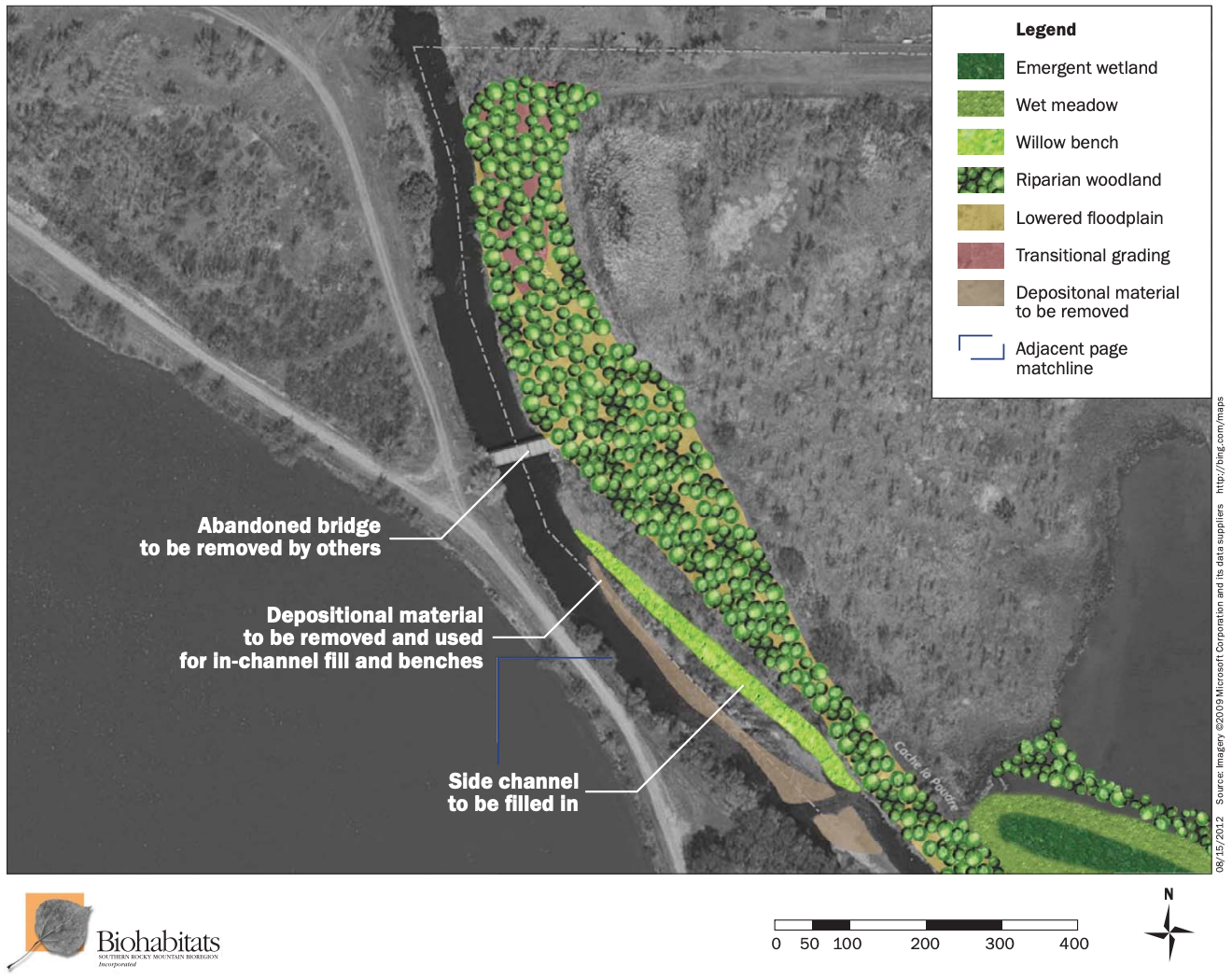

- material excavated from the artificially high banks at the Sterling Pond sub-project was "placed...in the adjacent former gravel pit pond to create a mosaic of riparian woodland, wet meadow and emergent wetland" (Ref. 6);
- with both the Sterling and McMurry sites having been recognised as a "degraded ecosystem", a total of five hectares of riparian floodplain forest and several hectares of wetland were restored (Refs. 1, 2 & 3);
- in order to "increase native species diversity and enlarge the riparian forest", a total "five diverse vegetated zones were created – emergent wetland, wet meadow, willow, cottonwood, and upland grasslands" (Ref. 1);
- 1,200 trees, 25,000 shrubs and 60,000 wetland grass plugs were planted, with an emphasis being placed on planting native vegetation and floodplain trees (Ref. 1);
- removal of the Josh Ames Diversion Structure (the defunct concrete dam) sought to achieve "multiple ecological benefits including lowering river water temperatures, eliminating fish barriers, and enhancing public safety for recreational float boating" (Ref. 1);
- following removal of the dam, a pool and riffle system was created which sought to "improv[e] aquatic habitat and fish passage and allo[w] for better sediment transport" (Ref. 6);
- the natural channel width was restored, and sediment which had accumulated behind the dam was repurposed "to provide additional lateral connectivity and improved riparian habitat essential to insects, fish, birds, and other wildlife" (Ref. 6);
- in reconnecting the river with its floodplains, it was hoped that groundwater and fluvial water could interact as an ecosystem, providing flood protection and also reducing "negative physical and chemical changes" associated with low flow periods (Ref. 1);
- a pedestrian trail and designated fishing areas were installed "to facilitate public use and stewardship of the
site" (Ref. 1); and
- "At McMurry, a series of boulders placed at approximate water elevations were placed to help visitors understand the importance of functional floodplains, and the necessity of high river flows to spill out of its channel" (Ref. 1).
- relevant sections of the river were re-naturalised through "significant removal of concrete, debris, and [five] old cars from the river bank placed there historically to prevent erosion" (Refs. 1 & 5);
- "steep and unnatural banks" which were constraining the river were lowered, reconnecting the river with its floodplains (Refs. 3 & 5);
- material excavated from the artificially high banks at the Sterling Pond sub-project was "placed...in the adjacent former gravel pit pond to create a mosaic of riparian woodland, wet meadow and emergent wetland" (Ref. 6);
- with both the Sterling and McMurry sites having been recognised as a "degraded ecosystem", a total of five hectares of riparian floodplain forest and several hectares of wetland were restored (Refs. 1, 2 & 3);
- in order to "increase native species diversity and enlarge the riparian forest", a total "five diverse vegetated zones were created – emergent wetland, wet meadow, willow, cottonwood, and upland grasslands" (Ref. 1);
- 1,200 trees, 25,000 shrubs and 60,000 wetland grass plugs were planted, with an emphasis being placed on planting native vegetation and floodplain trees (Ref. 1);
- removal of the Josh Ames Diversion Structure (the defunct concrete dam) sought to achieve "multiple ecological benefits including lowering river water temperatures, eliminating fish barriers, and enhancing public safety for recreational float boating" (Ref. 1);
- following removal of the dam, a pool and riffle system was created which sought to "improv[e] aquatic habitat and fish passage and allo[w] for better sediment transport" (Ref. 6);
- the natural channel width was restored, and sediment which had accumulated behind the dam was repurposed "to provide additional lateral connectivity and improved riparian habitat essential to insects, fish, birds, and other wildlife" (Ref. 6);
- in reconnecting the river with its floodplains, it was hoped that groundwater and fluvial water could interact as an ecosystem, providing flood protection and also reducing "negative physical and chemical changes" associated with low flow periods (Ref. 1);
- a pedestrian trail and designated fishing areas were installed "to facilitate public use and stewardship of the
site" (Ref. 1); and
- "At McMurry, a series of boulders placed at approximate water elevations were placed to help visitors understand the importance of functional floodplains, and the necessity of high river flows to spill out of its channel" (Ref. 1).
3. NBS domains, ES and scale
4. Governance and financing
5. Innovation
Type of innovation
Please specify technological innovation
The case study mainly concerned an infrastructural innovation, characterised by re-naturalisation of the river and restoration of its associated riparian terrestrial areas.
Novelty level of the innovation
Please specify novelty level of the innovation
It is unclear whether the initiative was copied or derived from a previous initiative.
Replicability/Transferability
Please specify Replicability/Transferability
It is unclear whether the initiative will be transferred to a new initiative.
