1. General information
Location and description of the intervention
City or FUA
IloIlo city
Region
Asia
Short description of the intervention
Iloilo River Esplanade is a promenade and linear park along the Iloilo River, created as part of the Iloilo River Rehabilitation Project. It is the largest linear park in the Philippines and was designed by the landscape architect Paulo Alcazaren. The esplanade is one of a kind in the country that aims to foster biodiversity, store carbon by mangroves and provide protection from possible flood damages. Furthermore, the project aspires to build a lifestyle hub for the locals and promotes educational eco-tourism. The site was an existing dike road devoid of shade and originally built just as a flood control measure. The redesign has showcased its effect on public amenities, received several recognitions and has become a magnet for tourists in this city. [1, 3, 6, 7]
Address

Mandurriao, Iloilo City,
Iloilo City
Philippines

Area boundary
POINT (122.543169 10.700807)
POINT (122.542571 10.699656)
POINT (122.571006 10.697122)
POINT (122.57217 10.697359)

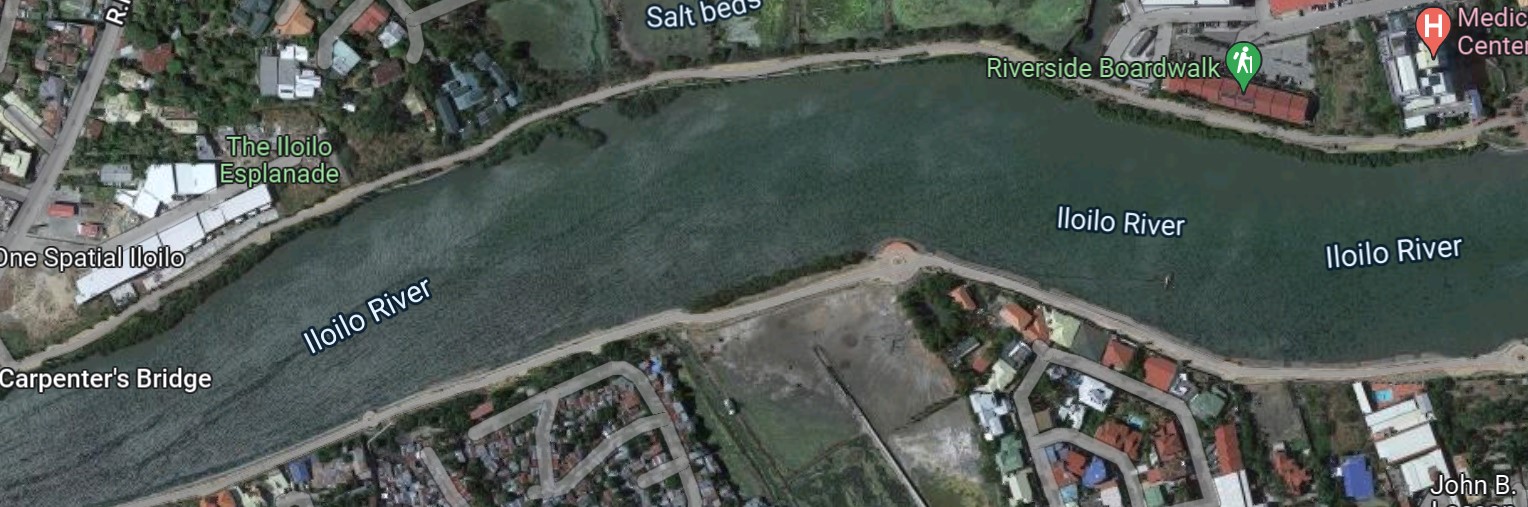

NBS area image
Source of NBS area image
Googlemaps. URL: https://www.google.com/maps/place/Drilon+Bridge/@10.7006555,122.5454679,990m/data=!3m1!1e3!4m5!3m4!1s0x33aee5701ed8c72d:0x6918d10dedd7baa!8m2!3d10.6971748!4d122.5715014. Accessed on 14th May, 2022.
Type of area before implementation of the NBS
Please specify “other type of area” before implementation of the NBS
Dike Road alongside the river [8]
Timeline of intervention
Start date of the intervention (planning process)
unknown
Start date of intervention (implementation process)
2010
End date of the intervention
2020
Present stage of the intervention
Goals of the intervention
1. To capture and store carbon by mangrove plantation alongside the Iloilo River.
2. To provide an improved flood protection system to the city of Iloilo.
3. To create new habitats and protect the existing ones.
4. To enhance species enrichment, especially native biodiversity.
5. To create an eco-tourism hub for the city. [1, 2, 3, 4, 7]
Quantitative targets
The project is being implemented in many phases. Each phase has its own quantitative targets. The first phase was completed in 2012, which targeted creating the Esplanade for 1.2 km. In later phases, the target was to stretch the Esplanade to 8.1 km in 2019 and to 9 km in 2020. [7]
Monitoring indicators defined
Unknown
Climate change adaptation: What were the goals of the NBS?
Climate change adaptation: What activities are implemented to realize the conservation goals and targets?
Climate change mitigation: What were the goals of the NBS?
Climate change mitigation: What activities are implemented to realize the conservation goals and targets?
Habitats and biodiversity conservation: What types of conservation goals are / were defined for the NBS intervention?
What types of restoration goals are / were defined for the NBS intervention?
Implementation activities
The area was previously a dike road, which was built to ease the traffic congestion and to protect the city from any possible flood. In 2010, the Iloilo City government reconsider and decided to convert the area into a linear park. The city government started work on developing the riverside stretch into a public park and launched the esplanade project as a key component of their Iloilo River Improvement initiative. The river banks on both sides of the river were built. Trees were planted, including flowering and ornamental trees. Mangroves were planted along the riversides. Fish and other species were protected and monitored. Different stakeholders were engaged at different levels and phases for the species conservation and mangrove plantation. Eco-trails were also created for the benefit of joggers and other city dwellers. Recently, the authority has started to showcase the area as an eco-tourism hub and an educational centre. [1, 3, 4, 6]
NBS domain and interventions
Ecological domain(s) where the NBS intervention(s) is/are implemented
Blue infrastructure
Rivers/streams/canals/estuaries
Coastal wetland, mangroves and salt marshes
Grey infrastructure featuring greens
Riverbank/Lakeside greens
Please specify how many trees were planted
Unknown
Please specify other amenities offered by the NBS
Eco-trail for joggers [6]
Services
Expected ecosystem services delivered
Provisioning services
Water (surface and ground water for drinking and non-drinking purposes)
Regulating services
Carbon storage/sequestration
Flood regulation
Habitat and supporting services
Habitats for species
Maintenance of genetic diversity
Cultural services
Tourism
Aesthetic appreciation
Recreation
Intellectual interactions (scientific and / or educational)
Scale
Spatial scale
Micro-scale: District/neighbourhood level
Beneficiaries
Governance
Governance arrangements
Please specify the roles of the specific government and non-government actor groups involved in the initiative
The project is led by the Philippines Government, Iloilo City LGU, Department of Public Works and Highways. The architecture was done by the PGAA Creative Design. Other private sector organizations also got involved at different phases. [3, 7, 8, 9]
Key actors - initiating organization
Key actors - Other stakeholders involved (besides initiating actors)
Local government/municipality
Private sector/corporate actor/company
Participatory methods/forms of community involvement used
Policy drivers
NBS intervention implemented in response to an Regional Directive/Strategy
No
NBS intervention implemented in response to a national regulations/strategy/plan
Unknown
NBS intervention implemented in response to a local regulation/strategy/plan
Yes
Please specify the "local regulation/strategy/plan"
House Bill No. 5495 declares several landmarks in Iloilo City as legislated tourist sites. The measure mandates the Department of Tourism, in coordination with the Iloilo City Cultural Heritage Conservation Council, the Tourism Infrastructure and Enterprise Zone Authority and other agencies, to prepare a development and maintenance plan for the areas and ensure their preservation. [10]
Mandatory or voluntary intervention
Mandatory (based on policy)
Intervention is mandatory
Enablers
Presence of specific city-level GI/NBS vision/strategy/plan - mentioned in connection to the project
Unknown
Presence of specific city-level GI/NBS section/part in a more general plan - mentioned in connection to the project
Unknown
Presence of city network or regional partnerships focused on NBS - mentioned in connection to the project
Unknown
Presence of GI / NBS research project - mentioned in connection to the project
Yes
Please specify
A development project is being proposed: “Iloilo City Eco-Trail: A Showcase of Rich Biodiversity and Environmental Protection,” in partnership with the University of the Philippines Visayas (UPV). [6]
Subsidies/investment for GI / NBS in the city - mentioned in connection to the project
Yes
Please specify
Funds by the Department of Public Works and Highways (DPWH), the Government of the Philippines. [10, 11]
Co-finance for NBS
Unknown
Co-financing governance arrangements
Unknown
Was this co-governance arrangement already in place, or was it set up specifically for this NBS?
Financing
What is/was the Cost/Budget (EUR) of the NBS or green infrastructure elements?
Unknown
What are the total amount of expected annual maintenance costs?
Unknown
What is the expected annual maintenance costs of the NBS or GI elements?
Unknown
Please specify cost savings
Unknown
Please specify total cost (EUR)
1.2587 billion Philippine Peso or 23.04 million Euro (1 Philippine Peso= 0.018 EURO) [1, 7]
Source(s) of funding
Non-financial contribution
Unknown
Which of the involved actors was motivated by this model?
Please specify technological innovation
The previous dike road has been renovated into a promenade with a flood protection mechanism. Trees were planted on the promenade to create gardens. In addition, natural flood protections were created by mangrove plantations along the shoreline. An eco-trail was created for running and jogging. [3, 6, 8]
Please specify novelty level of the innovation
In addition to providing ecosystem services and helping Iloilo city to fight climate change, the park serves as an educational ecotourism hub. This is the first of its kind in the country. [7]
Please specify Replicability/Transferability
The concept of the park has gained attention nationwide and other cities are taking initiatives in replicating the ideas and creating similar NBS structures. [7]
Impacts, benefits
Description of environmental benefits
1. The promenade along the river provides extra protection from any possible flooding events. The grey structures and the mangroves along the shorelines protect the city from floodwater damage.
2. The mangroves are the natural and native tree and shrub species along the riverside. It is home to 22 of the country’s 35 mangrove species. The plantation of more mangroves has improved the ecosystem of the area as it supports other species and creates habitats where species can thrive. This has improved the overall species diversity in the area and in the river water.
3. The conservation and protection of the river have also rejuvenated the fish species found in the water. The species variety has been improved since the inception of the project.
4. In addition to protecting the city from floods and providing habitats, the mangroves are also very efficient in carbon absorption. This is expected to help the city to fight climate change effects in the long turn.
5. Iloilo City’s growing bird-watching community has also noted that the resurgence of mangroves in the locale has heralded the return of migratory waterbirds to the river, enriching an already diverse population of kingfishers, egrets, herons, “tikling” (buff-banded rail), “maya” (Philippine oriole), “trivis,” “tigbabalang,” and “tarurok,” among others, in the area. [2, 4, 5, 11]
Description of economic benefits
1. The project has turned an area with illegal structures built along the banks, reclamation, congestion at the Iloilo wharf, overfishing and pollution into a lush and exciting linear park for the locals to enjoy. The area received stimulation in development. This has increased the real-estate development and property price to 18,000 pesos or more per square metre from 2-3,000 pesos per square metre.
2. The project has revamped the tourism sector of the city. The esplanade has gained attention countrywide. This has helped the city to get visitors from different regions.
3. It has created more business and employment opportunities in the area. [8, 10]
Description of social and cultural benefits
1. It is a popular tourist spot where visitors enjoy a leisurely stroll and enjoy the serene views along the river. Locals usually go to the esplanade for a hearty jog or to spend with friends and family.
2. The esplanade has become a tourist attraction, which helped the Iloilo City to be identified as a liveable city, among others.
3. The project also removed any kind of vandalism issues along the riverside, which has marked the space as a safe space for people to enjoy.
4. The promenade has provided added safety from climate change disasters such as floods.
5. As the space is open for all, this has improved the connection between people and nature. The place has become very popular and gets routine visitors regularly. They use the space for jogging, running or other kinds of exercises.
6. The project has created an educational ecotourism hub, which promotes awareness related to NBS and its benefits. Collaboration with the University of the Philippines Visayas is supporting scientific research on a GIS-based App development with tagged locations of mangrove species. [1, 2, 3, 5, 8, 9]
Type of reported impacts
Indicators
Unknown
Analysis of specific impact categories
Job creation: The NBS created ...
Environmental justice: The implementation of the NBS project resulted in ...
Negative impacts: Did the project cause any problems or concerns?
No information was found regarding negative impacts of the project
COVID-19 pandemic
The esplanade has provided a good relaxing area in the difficult times during the COVID pandemic. Locals reported that the visits helped them to soothe their minds. For many locals, who lost their jobs during the pandemic, the river has provided a good fish catch for the family to consume and sell at the local market. People got benefited from the project in many aspects during the pandemic. [5]
Methods of impact monitoring
Evidence for use of assessment
Presence of an assessment, evaluation and/or monitoring process
Yes
Presence of indicators used in reporting
No evidence in public records
Presence of monitoring/evaluation reports
No evidence in public records
Availability of a web-based monitoring tool
Yes
Impact assessment mechanism
Name of any specific impact assessment tools
Eco-Trail App, or a geographic information system (GIS)-based app, will be developed with tagged locations of mangroves species. [6]
Use of GIS in mapping impacts
Yes
Citizen involvement
Citizens involvement in assessment/evaluation
No
Citizens involvement in the analysis of the assessment/evaluation
No
Follow-up to the evaluation / assessment
No
References
List of references
1. Explore Iloilo. (n.d.) Iloilo River Esplanade. Riverside Promenade with Peaceful Vies of the City. URL: https://www.exploreiloilo.com/do/info/iloilo-river-esplanade/. Accessed on 14th May, 2022.
2. Center for West Visayan Studies. (n.d.) Iloilo River Esplanade. Unoversity of THE Philippines Visayas. Google Art and Cutlture. URL: https://artsandculture.google.com/story/iloilo-river-esplanade-iloilo-heritage-mapping-project/qgWRqK7e5fqmJg?hl=en. Accessed on 14th May, 2022.
3. Treñas, J. (2021) ILOILO RIVER ESPLANADE: FROM A LIFESTYLE HUB TO ALSO AN EDUCATIONAL ECO-TOURISM HUB. Facebook Post. URL: https://www.facebook.com/JerryTrenasOfficial/posts/4249816441770760. Accessed on 14th May, 2022.
4. JCI Regatta - Iloilo. (2022). HARBOURING FORWARD: MANGROVE GROWING. Facebook Post. URL: https://www.facebook.com/jciregattailoilo/posts/4896411590413540. Accessed on 14th May, 2022.
5. Albay, R. (2022). How Iloilo City brought its river back to life and back to its people. ABS-CBN. URL: https://news.abs-cbn.com/ancx/culture/spotlight/11/04/21/the-master-plan-that-brought-iloilo-river-back-to-life. Accessed on 14th May, 2022.
6. Tayona, G. (2021). Iloilo River Esplanade eyed as educational ecotourism hub. Panay News. URL: https://www.panaynews.net/iloilo-river-esplanade-eyed-as-educational-ecotourism-hub/. Accessed on 14th May, 2022.
7. Momblan, G. (2019). New sections of Iloilo Esplanade launched. Philippine News Agency. Republic of the Philippines. URL: https://www.pna.gov.ph/articles/1076211. Accessed on 14th May, 2022.
8. PGAA Creative Design (n.d.) Iloilo Esplanade. URL: https://pgaacreativedesign.com/projects/parks-open-spaces/iloilo-esplanade. Accessed on 14th May, 2022.
9. Taclino, N. (2020). More mangroves at new Esplanades. Iloilo Today, URL: https://www.iloilotoday.com/mangroves-new-esplanades/. Accessed on 14th May, 2022.
10. Burgos, N. P. Jr. (2012). With Esplanade Comes a New Iloilo River Experience. Inquirer.net. URL: https://newsinfo.inquirer.net/270848/with-esplanade-comes-a-new-iloilo-river-experience. Accessed on 14th May, 2022.
11. Yap, T. (2022). P1.9-Billion Iloilo road expansion, river park projects underway. Manila Bulletin. URL: https://mb.com.ph/2022/04/26/p1-9-billion-iloilo-road-expansion-riverpark-projects-underway/. Accessed on 14th May, 2022.
Comments and notes
Public Images
Iloilo City Promenade
Iloilo City Promenade
https://pgaacreativedesign.com/projects/parks-open-spaces/iloilo-esplanade
Iloilo City Esplanade Eco-trail
Iloilo City Esplanade Eco-trail
https://pgaacreativedesign.com/projects/parks-open-spaces/iloilo-esplanade
Iloilo City Promenade: Locals Relaxing and Exercising
Iloilo City Promenade: Locals Relaxing and Exercising
https://pgaacreativedesign.com/projects/parks-open-spaces/iloilo-esplanade
Iloilo City Promenade: Different Vegetation
Iloilo City Promenade: Different Vegetation
https://pgaacreativedesign.com/projects/parks-open-spaces/iloilo-esplanade
